AXL ZENSTOR Storage 2U12
A high-density 2U enterprise server platform powered by dual AMD EPYC processors, delivering exceptional compute performance, PCIe Gen5 scalability, and storage flexibility for modern data center workloads.
- Self-healing storage technology, ADAPT and ADR
- Deliver unfettered data access with dual redundant controllers capable of achieving superior sequential read and write performance
- Expand a data centre seamlessly with flexible SSD, HDD, and hybrid configuration options
- Efficiently manage hot and cold data with real-time data tiering
- Save space and maximise capacity by stacking 10 Enclosures for 120 drives of data storage
Enterprise performance, engineered in India
Zenstor advanced storage array is a petabyte-scale, rack- mounted block storage enclosure with self-healing technology, advanced data protection, and software value delivering super efficient mass-capacity storage for conventional data centres and cloud infrastructure..
Where it excels
Virtualization & private cloud · databases & applications · consolidation and edge deployments · enterprise data-center environments.
| Specifications | |
| Controller Model | 4006 VELOSCT (2 per enclosure) |
| Controller Performance | Up to 12 GB/s read throughput, 10 GB/s write throughput, 725K IOPS (Random Read) |
| Advanced Software Features | Auto-Tiering, Snapshots, Asynchronous Replication |
| Base Array Software Features | Virtual pools, Thin provisioning, ADAPT, SSD read cache, Encryption |
| High-Availability Features | Redundant hot-swap controllers, Redundant hot-swap drives, fans, power, Dual power cords, Hot standby spare, Automatic failover, Multi-pathsupport |
| Device (Drive) Support | SAS HDD, NL-SAS HDD, SAS SSD (2.5 or 3.5 Form Factors) |
| Data Protection | ADAPT and RAID levels supported: 0, 1, 5, 6, 10 |
| Self Healing Technology | Autonomous Drive Regeneration (ADR) |
| System Maximum Expansion | 2U12 Arrays, Up to 12 drives per enclosure, 10 enclosures maximum including the master, totalling 120 Drives2U24 Arrays, Up to 24 drives per enclosure, 10 enclosures maximum including the master, totalling 240 Drives

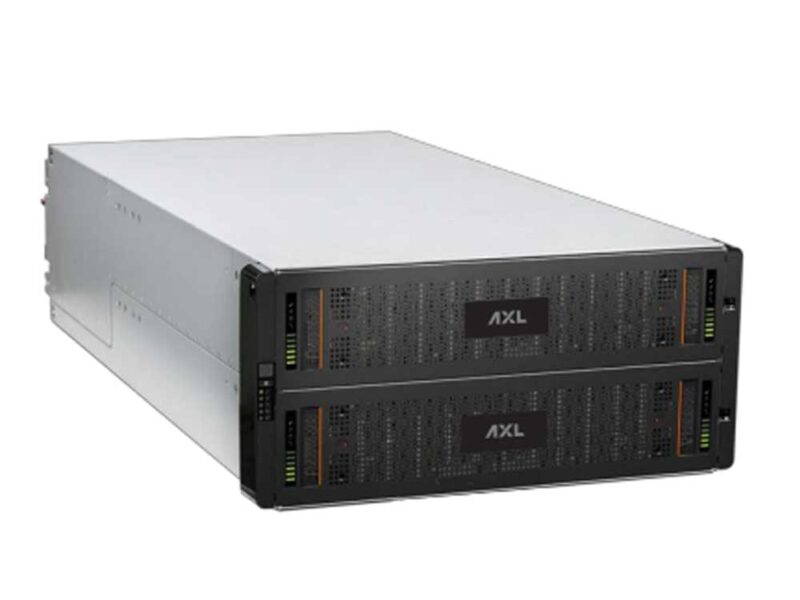

5U84 Arrays, Up to 84 drives per enclosure, 4 enclosures maximum including the master, totalling 336 Drives |
| Physical | 2U: Height: 87.9 mm/3.46 in, Width: 443 mm/17.44 in, Depth: 630 mm/24.8 in, Width w/ear mounts: 483 mm/19.01 in, Weight: 17 kg/38 lb, Weight(with drives): 30 kg/66 lb |
| Hosts | |
| External Ports | 4 per Controller, 8 per System |
| Fibre Channel Models | Host speed: 32/16 Gb/s Fibre Channel, Interface type: SFP+/SFP28 |
| iSCSI Models | Host speed: 10 Gb/s, 25 Gb/s iSCSI, Interface type: SFP+/SFP28 |
| Ethernet Models | 10GBASE-T (auto-negotiation to 1Gb) |
| SAS Models | Host speed: 12 Gb/s, 6 Gb/s SAS, Interface type: HD Mini-SAS |
| System Configuration | |
| System Memory | 48 GB per system |
| Volumes per System | 1,024 |
| Cache | Mirrored cache, Supercapacitor cache backup, Cache backup to flash – non-volatile |
| Management | |
| Interface Types | 10/100/1000 Ethernet, Micro USB |
| Protocols Supported | SNMP, SSL, SSH, SMTP, HTTP(S), Redfish |
| Management Consoles | Web GUI, CLI |
| Management Software | Systems storage management console, Remote diagnostics, Non-disruptive updates, Volume expansion |
| Power Requirements — AC Input | |
| Input Power Requirements | 100 VAC-240 VAC, 50 Hz/60 Hz |
| Max Power Output per PSU | 580W |
| Environmental/Temperature Ranges | |
| Operating/NonoperatingTemperature | ASHRAE A2, 5°C to 35°C (41°F to 95°F), derate 1°C / 300m above 900m, 20°C / hr max rate of change / –40°C to 70°C (–40°F to 158°F) |
| Operating/Nonoperating Humidity | –12°C DP and 8% RH to 21°C DP and 80% RH, max DP 21°C / 5% to 100% non-condensing |
| Operating/Nonoperating Shock | 5 Gs, 11 ms, half sine pulses/15 Gs, 7 ms, half sine pulses |
| Operating/Nonoperating Vibration | 0.18 Gs rms 6 Hz to 500 Hz random / 0.5 (Z-axis) and 0.25 (X&Y-axis) Gs rms 6 Hz to 200 Hz random |
| Standards/Approvals | |
| Standard Marks/Approvals | United States, Canada, European Union (EU), Australia/New Zealand, Japan, China (PRC), Russia, Mexico, Germany, South Korea, Taiwan, India |
| Safety Certifications | UL 62368-1 | CAN/CSA-C22.2 No.62368-1- 19 | CE to EN 62368-1 | CB IEC 62368-1 | Power Supplies CCC & BIS |
| Emissions (EMC) | FCC CFR 47 Part 15 Subpart B Class A | ICES/NMB-003 Class A | EN 55032:2015 Class A |AS/NZS CISPR 22/CISPR 32 Class A | VCCI Class A | KN 32/KN 35 Class A | CNS 15936 Class A |
| Harmonics & Flicker | EN 61000-3-2 | EN 61000-3-3 |
| Immunity | EN 55032 | KN 32/KN 35 |
| Environmental Standards | The RoHS Directive (2011/65/EU) | The WEEE Directive (2012/19/EU) | The REACH Directive (EC) No. 1907/2006 and WFD Directive (EU) 2018/815 |
| Power Supply Units | |
| Power Supply | Ecodesign (Part SP-PCM01-HE580-AC/Model FS580FS104G-XX) – Gold
Power Efficiency: 115 VAC/60 Hz 10% Load = >80%; 20% Load = >87%; 50% Load = >90%; 100% Load =>87%; Power Efficiency: 230 VAC/50 Hz 10% Load = >80%; 20% Load =>88%; 50% Load = >92%; 100% Load =>88% Power Factor Conditions (PFC): 10% Loading = N/A; 20% Loading = >0.90; 50% Loading = >0.90; 100% Loading = >0.95 |
| Power Supply | Ecodesign (Part SP-PCM4-PT580-AC/Model SGT-S-0580ADU003) – Platinum
Power Efficiency: 115 VAC/60 Hz 10% Load = >80%; 20% Load = >90%; 50% Load = >92%; 100% Load =>89%; Power Efficiency: 230 VAC/50 Hz 10% Load = >80%; 20% Load =>90%; 50% Load = >94%; 100% Load =>91% Power Factor Conditions (PFC): 10% Loading = N/A; 20% Loading = >0.90; 50% Loading = >0.95; 100% Loading = >0.95 |
Full configuration sheet available on request — contact our team.
Backed across India
Every AXL system is supported by a self-reliant supply chain — 100+ channel partners across 40+ service locations — for sourcing, deployment and ongoing maintenance.
Installation, configuration and software-stack setup can be arranged as part of deployment. Talk to our team for SLA and on-site support options.
Enterprise reliability, nationwide support
Engineered for high availability with redundant power and enterprise-grade components — backed by AXL's self-reliant supply chain of 100+ channel partners across 40+ service locations for sourcing, deployment and ongoing maintenance.
