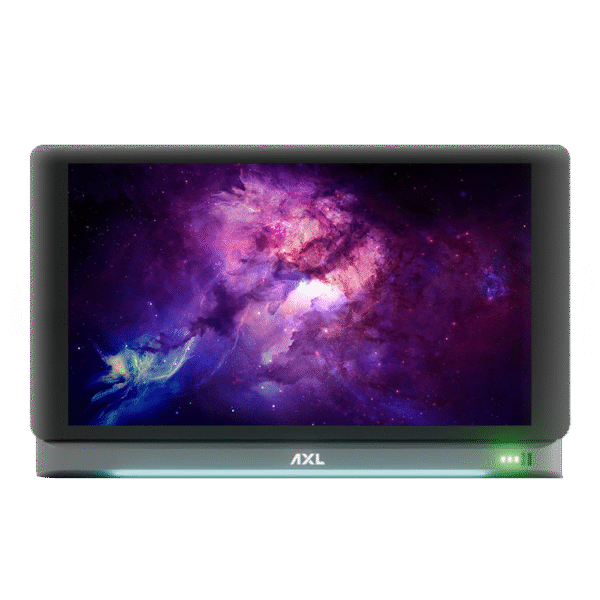

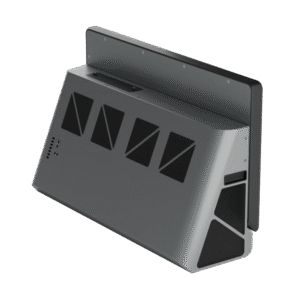

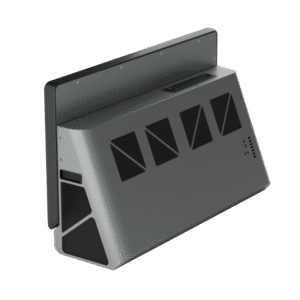

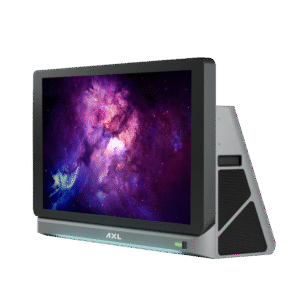

AXL Zenix HPC All in One Super Computer

Starting from

3,950,000.00

Product Details:

Feature/Component Specifications
Supported OS Red Hat® Enterprise Linux/CentOS, Ubuntu server LTS, Windows 10 Pro
Processor Dual Socket, 2nd Generation Intel® Xeon® Scalable Processors
TDP up to 165 W
2 UPI up to 10.4GT/s
Memory 20 DDR4 DIMM slots
Supports LRDIMM/RDIMM, up to 2933 MT/s, 1.28TB max
Up to 8 NVDIMMs, 192 GB Max
ECC DDR4 DIMMs only
Storage Front: Up to 2 × 2.5″ NVMe/SATA SSD max 60TB
HWRAID support with Intel Virtual RAID on CPU (VROC)
Security TPM2.0, SecureBoot, Cryptographically signed firmware
Dimensions Height: 1U- 1.73″ [44mm], 2U- 3.46″ [88 mm]
Width: 16.91″ [430mm]
Depth: 35.47″ [901mm]
Power Supplies 220/240 V AC Input supply
+12V PSU (with built-in server configuration) with 2400W
Configurations Industry graded Supercomputer with Server Configuration
Built in 2U Rudra server
Ready to use HPC Desktop System
Ports USB 3.0 Port × 5
RJ45 LAN Ports × 2
Serial Port × 1
BMC – RJ45 PORT × 1
HDMI PORT × 2
Network and I/O Front: 2×10GbE, 1×1GbE BMC management, 1×USB 3.0
Rear: 1× OCP NIC3.0 up to 100Gbps (field replaceable)
Riser: 2 PCIe Gen3 x16
GPU In-Built GPU × 2 (Nvidia Quadro P1000, Nvidia A30)
Supported: Nvidia A100, Nvidia RTX 4500/4000 ADA/4500 ADA/5000 ADA, Nvidia A800
Accelerator Options Up to two 300W GPUs
Health Monitor CPU voltage, temperature, error monitoring
Event logging based on sensors/CPU
CPU, GPU, chassis temperature
Management IPMI 2.0, Intel Node Manager, OpenBMC via BMC 1G, Redfish/Rest Interface, Standard IPMI tool, ACPI Power Management
User Screen 32 Inch In-Built Display for the Ready to use HPC Desktop System Experience

AXL ZENIX AIO is a ready-to-use HPC System pre-loaded with all required system software and applications from selected scientific domains. The system is designed to be an enabling tool for research organizations as well as academic institutions that are on the verge of adopting HPC culture and skill sets generation.

HPC is designed to run complex workloads utilizing good compute power, GPU support and network options. It can handle various demanding applications and workloads, like high-performance computing (HPC) applications, cloud and edge computing, data warehouses, e-commerce, databases, and communication.

Salient Features

HPC AIO comes with an unbound performance feature with supercomputer in a box.

  • HPC system in a table top model.

  • Powered with minimum of 2 multicore CPUs each with at least 10 cores along with either one or two number of many core or GPU accelerator cards.

  • Phenomenal solution for academic, scientific and research institutions that are on the verge of adopting high performance computing culture.

  • Equipped with C-DAC’s indigenously developed software technologies for HPC applications in academic and scientific domains.

  • Easy to deploy solution with minimal datacentre infrastructure.

  • Pre-loaded with parallel programming development environment.

  • 2 TF and above computing power.

  • Customizable as per the user hardware and software requirement.

  • Scalable model.

  • Pre-loaded with Accelerator (GPGPU/MIC) enabled parallel applications and development tools.

  • Access to C-DAC PARAM Yuva II at National Param Supercomputing Facility for computations on a larger scale as per the NPSF usage policy.

  • Support for C-DAC’s Reconfigurable Computing System technology to speed up applications through hardware.

  • Resource for parallel programming training and workshops.

  • Affordable computing environment for the faculty, students – both undergraduate and post graduate, PhD scholars.

Target Applications

  • Academics
  • Scientific Reseach
  • Defence
  • Real Time Signal Processing
  • Virtual Reality (VR) Simulations for Combat Training
  • Hardware/Product Simulations
  • CFD Simulations for Aerodynamics & Hydrodynamics
  • Strategic Data Analytics for Threat Management
