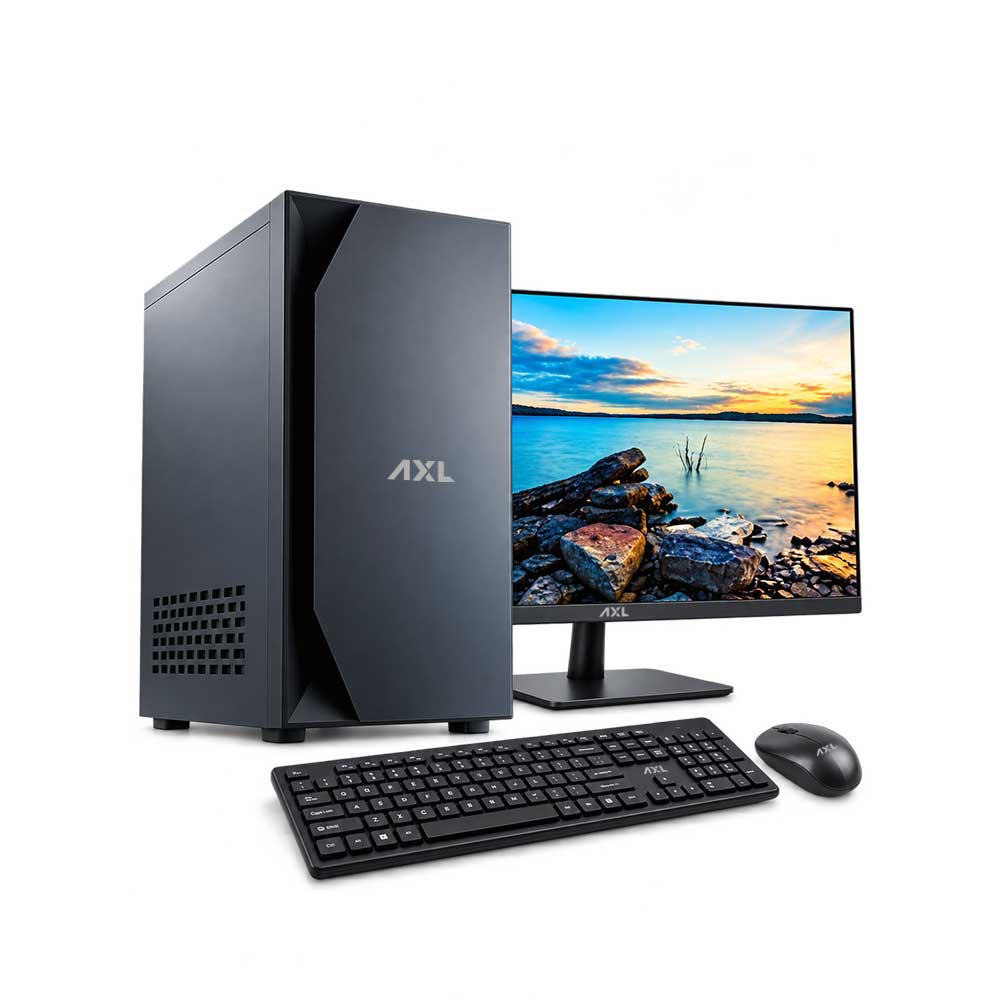

AXL Vayu Desktop
The AXL Vayu Desktop DT12I7 is a reliable desktop computing solution featuring support for 12th, 13th, and 14th Gen Intel Core processors. With Intel H610 chipset, DDR4/DDR5 memory support, 2.5 Gigabit LAN, high-speed M.2 storage, 4K display output, and multiple connectivity options, it delivers versatile performance for everyday business and office computing needs.
- Processor Support: Intel Core i3, i5, and i7, 12th/13th/14th Gen.
- Memory: Dual-channel DDR4/DDR5 technology with 2 DIMM slots.
- Storage: Ultra M.2 PCIe Gen3x4 and 4 SATA3 connectors.
- Graphics & Display: Intel Xe Graphics architecture, HDMI output up to 4K at 60Hz.
- Connectivity & Design: 2.5 Gigabit LAN, Micro-ATX form factor, and Windows 10/11 support.
Enterprise performance, engineered in India
The AXL Vayu Desktop DT12I7 is a reliable desktop computing solution featuring support for 12th, 13th, and 14th Gen Intel Core processors. With Intel H610 chipset, DDR4/DDR5 memory support, 2.5 Gigabit LAN, high-speed M.2 storage, 4K display output, and multiple connectivity options, it delivers versatile performance for everyday business and office computing needs.
Where it excels
Virtualization & private cloud · databases & applications · consolidation and edge deployments · enterprise data-center environments.
| Unique Features |
Super Alloy (Premium Power Choke, Sapphire Black PCB, High Density Glass Fabric PCB) Ultra M.2 (PCIe Gen3x4 & SATA3), Full Spike Protection (USB, Audio, LAN Ports) |
| CPU Support | Supports I3/I5/I7/14th / 13th / 12th Gen Intel® Core™ Processors (LGA1700)
Digi Power design, 6 Power Phase Supports Intel® Hybrid Tech & Turbo Boost Max 3.0 |
| Chipset | Intel® H610 |
| Memory | Dual Channel DDR4/5 Memory Technology
2xDDR4/5 DIMM Slots |
| BIOS | 128Mb AMI UEFI Legal BIOS with GUI Support |
| Graphics | Intel® Xe Graphics Architecture (Gen 12)
1x HDMI 2.1 TMDS Compatible, Supports HDCP 2.3 and max resolution up to 4K 60Hz 1xD-Sub, supports max resolution up to Full HD (1920×1080) 60Hz |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| LAN | 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Dragon RTL8125BG |
| Expansion Slots |
1 x PCIe 4.0 x16 Slot(PCIE1), Supportsx16 mode, Chipset: 1xPCle 3.0×1 Slot (PCIE2) |
| Storage | 1 x Ultra M.2 Socket (M2_1,Key M) supports type (2242/2260/2280 Pcle Gen 3×4(32 Gb/S) mode 4xSATA3 6.0 Gb/s Connectors |
| Internal Connectors |
1 x COM Port, 1 x SPI TPM, 1 x Chassis Intrusion/Speaker
1 x CPU Fan (4-pin, 1A), 1 x CPU/Water Pump Fan (4-pin, 2A) 2 x Chassis/Water Pump Fan (4-pin, 2A each), 1 x 24-pin ATX, 1 x 8-pin 12V Power 1 x Front Audio, 2 x USB 2.0 Headers (3 Ports), 1 x USB 3.2 Gen1 Header (2 Ports) |
| Rear I/O | 2 x Antenna Mounts, 1 x PS/2 Mouse/Keyboard,1 x D-Sub, 1 x HDMI, 1 x 1.4, 2 x USB 3.2 Gen1, 2 x USB 2.0 1 x RJ-45 LAN, 3 x Audio Jacks (Line-In, Speaker, Mic) |
| Software / UEFI |
Motherboard Utility (A-Tunning) |
| Hardware Monitor |
Fan Tachometer (CPU, Water Pump, Chassis), Quiet Fan (Auto adjust)
Fan Multi-Speed Control, Case Open Detection, Voltage Monitoring (CPU, DRAM, PCH, +12V, +5V, +3.3V) |
| Form Factor |
Mid Tower, Micro ATX , Solid Capacitor Design |
| OS Support |
Windows® 10 64-bit / Windows® 11 64-bit |
| Keyboard | USB Keyboard & Mouse |
| Power Supply |
230V AC/50 Hz |
Full configuration sheet available on request — contact our team.
Backed across India
Every AXL system is supported by a self-reliant supply chain — 100+ channel partners across 40+ service locations — for sourcing, deployment and ongoing maintenance.
Installation, configuration and software-stack setup can be arranged as part of deployment. Talk to our team for SLA and on-site support options.
Enterprise reliability, nationwide support
Engineered for high availability with redundant power and enterprise-grade components — backed by AXL's self-reliant supply chain of 100+ channel partners across 40+ service locations for sourcing, deployment and ongoing maintenance.
Configure your Vayu PC DT12I7
Share your workload — virtualization, database, cloud or AI — and our team will spec, build and support the right configuration.
Request a Quote→
