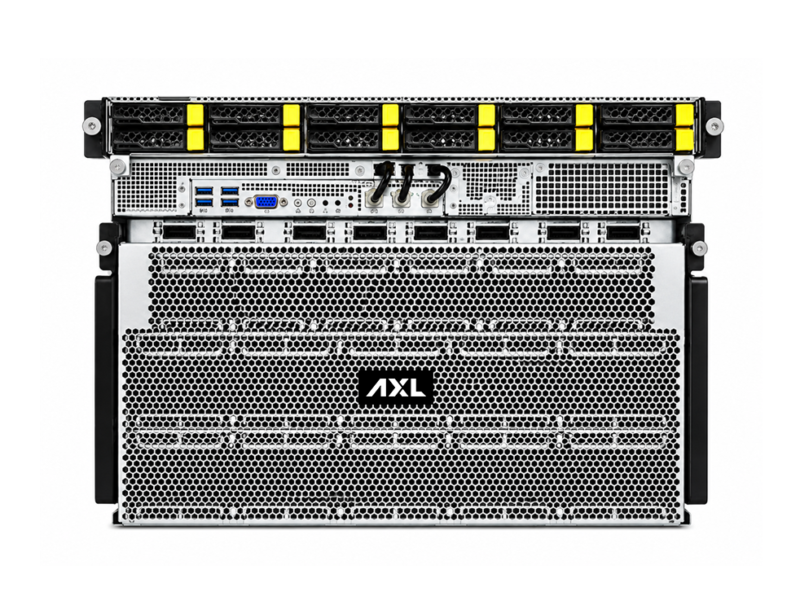

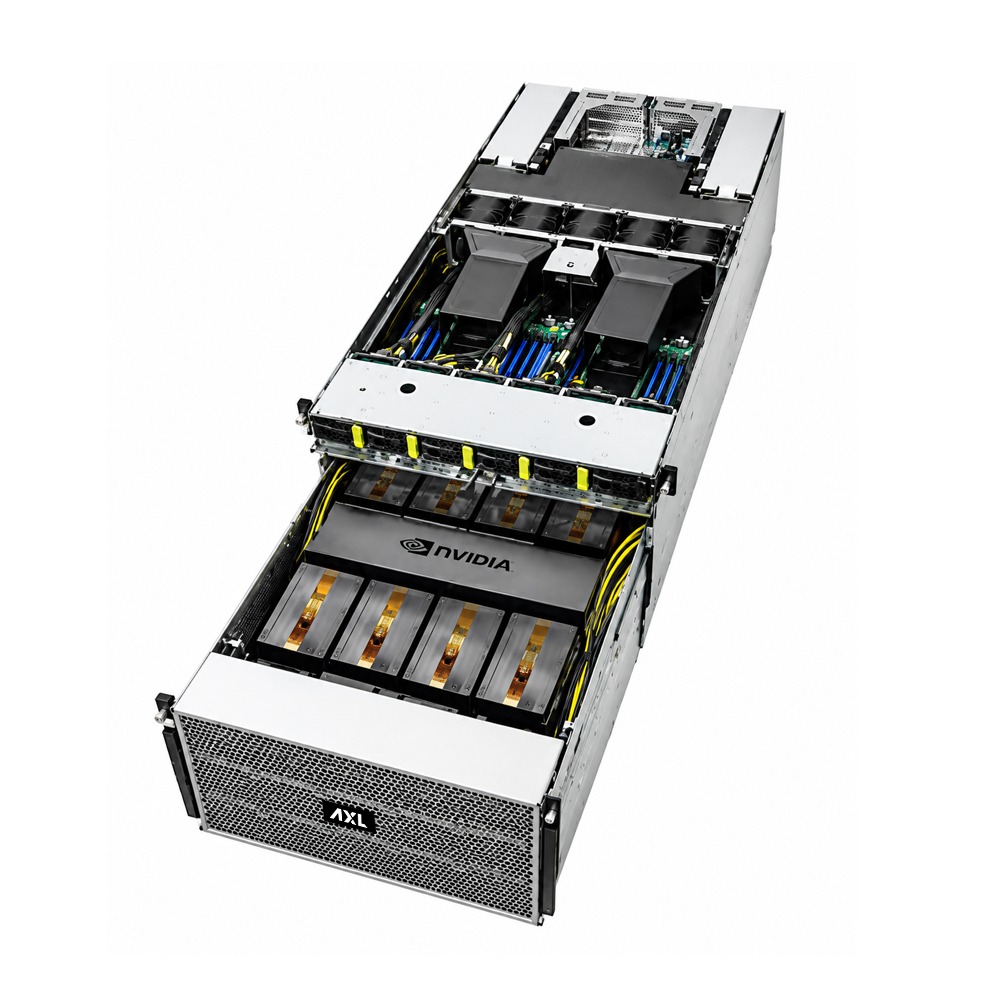

AXL Server ZR580
A high-density 2U enterprise server platform powered by dual AMD EPYC processors, delivering exceptional compute performance, PCIe Gen5 scalability, and storage flexibility for modern data center workloads.
- 8U rackmount with 6+6 CRPS, 80 PLUS® Titanium, 3000 W
- NVIDIA HGX™ B200 8-GPU with NVIDIA® NVSwitch™
- PCIe Switch Synthetic Mode — optimised GPU-to-CPU, GPUDirect RDMA NIC and GPUDirect Storage
- Dual Socket E (LGA 4677) — 5th and 4th Gen Intel® Xeon® Scalable
- 16+16 DIMM slots (2 DPC) — DDR5 RDIMM, RDIMM-3DS
- 8 × HHHL PCIe 5.0 ×16 and 2 × FHHL PCIe 5.0 ×16
- 8 × hot-swap 2.5″ NVMe (PCIe 5.0 ×4) via PCIe switch
- 2 × hot-swap NVMe / SATA and 2 × hot-swap SATA bays
- 1 × M.2 (PCIe 3.0 ×4 or SATA 6 Gb/s) and 1 × M.2 (PCIe 3.0 ×4)
- 2 × RJ45 (1 GbE) by Intel® i350-AM2
- Remote management (IPMI) with iKVM-capable BMC
Enterprise performance, engineered in India
The AXL Server ZR580 is engineered to deliver dependable performance, availability and scalability for enterprise workloads. As a proudly Indian OEM under the ‘Make in India’ initiative, AXL designs, builds and supports it locally — configured to your workload.
Where it excels
Virtualization & private cloud · databases & applications · consolidation and edge deployments · enterprise data-center environments.
| GPU Platform | NVIDIA HGX™ B200 8-GPU with NVIDIA® NVSwitch™ |
| Eight-GPU baseboard with all-to-all NVSwitch fabric | |
| Switch Fabric | PEX89104 PCIe switch · synthetic mode topology |
| Optimised for GPU-to-CPU, GPUDirect RDMA NIC and GPUDirect Storage | |
| Processor | Dual-socket — supports 5th Gen and 4th Gen Intel® Xeon® Scalable processors · TDP up to 350 W |
| Socket & Chipset | Dual Socket E (LGA 4677) · Intel® C741 chipset |
| Memory | 16+16 DIMM slots (2 DPC) · DDR5 288-pin RDIMM and RDIMM-3DS |
| Max per DIMM: RDIMM 96 GB · RDIMM-3DS 128 GB (2H) / 256 GB (4H) | |
| 5600 MT/s (1 DPC) / 4400 MT/s (2 DPC) on 5th Gen · 4800 MT/s (1 DPC) / 4400 MT/s (2 DPC) on 4th Gen | |
| Maximum 8 TB system memory · 1.1 V · speed and capacity vary by CPU SKU | |
| Storage — Front | 8 × hot-swap 2.5″ NVMe (PCIe 5.0 ×4) via PCIe switch |
| 2 × hot-swap 2.5″ NVMe (PCIe 5.0 ×4) [CPU] / SATA [PCH] | |
| 2 × hot-swap 2.5″ SATA [PCH] | |
| Storage — Internal | 1 × M.2 M-key (PCIe 3.0 ×4 or SATA 6 Gb/s), 2280 / 22110 [PCH] |
| 1 × M.2 M-key (PCIe 3.0 ×4), 2280 / 22110 [PCH] | |
| PCIe Expansion | Rear: 8 × HHHL PCIe 5.0 ×16 · 2 × FHHL PCIe 5.0 ×16 |
| Networking | 2 × RJ45 1 GbE via Intel® i350-AM2 |
| Server Management | ASPEED AST2600 BMC · IPMI remote management |
| Dedicated IPMI LAN via Realtek RTL8211F | |
| Graphics | ASPEED AST2600 · 512 MB DDR4 VRAM · 1 × DB15 (VGA) |
| Front Panel | Power button with LED · reset button · NMI button · UID button |
| System fault LED · HDD activity LED | |
| 4 × USB 3.2 Gen 1 Type-A · 1 × DB15 (VGA) | |
| 2 × RJ45 1 GbE and 1 × dedicated IPMI (shared with rear I/O) | |
| Rear I/O | 1 × UID button · 1 × DB15 (VGA) |
| 2 × USB 3.2 Gen 1 Type-A | |
| 2 × RJ45 1 GbE and 1 × dedicated IPMI (shared with front panel) | |
| Power Supply | 6+6 CRPS redundant configuration · 80 PLUS® Titanium |
| 3002.4 W at 220–240 VAC · 2900 W at 200–220 VAC | |
| AC input 200–240 Vrms, 50/60 Hz | |
| Cooling | 29 × PWM 80 × 80 mm fans · 4 × PWM 40 × 40 mm fans |
| System BIOS | AMI UEFI BIOS · 256 Mb (32 MB) SPI flash ROM |
| ACPI 6.4+ wake events · SMBIOS 3.5.0+ · Plug and Play · instant flash | |
| Hardware Monitor | CPU, motherboard and card-side temperature sensing |
| Fan tachometer, auto speed adjust and multi-speed control | |
| Full rail voltage monitoring including +12 V, +3VSB, +5VSB | |
| Environment | Operating temperature 10 °C to 35 °C |
| Non-operating temperature −40 °C to 70 °C | |
| Non-operating humidity 20 % to 90 %, non-condensing | |
| Form Factor | 8U rackmount · 448 (W) × 930 (D) × 353.6 (H) mm |
| 17.6″ × 36.6″ × 13.9″ | |
| Supply & Support | Supplied by AXL under ODM agreement with the platform manufacturer · India-based warranty, spares and escalation through AXL’s service network [VERIFY: local content declaration — see note] |
Full configuration sheet available on request — contact our team.
Backed across India
Every AXL system is supported by a self-reliant supply chain — 100+ channel partners across 40+ service locations — for sourcing, deployment and ongoing maintenance.
Installation, configuration and software-stack setup can be arranged as part of deployment. Talk to our team for SLA and on-site support options.
Enterprise reliability, nationwide support
Engineered for high availability with redundant power and enterprise-grade components — backed by AXL's self-reliant supply chain of 100+ channel partners across 40+ service locations for sourcing, deployment and ongoing maintenance.
